OPTIMA® ANALYZERS

IN SITU AND CONTINUOUS HIGH TEMPERATURE OXYGEN ANALYZERS

OPTIMA® analyzers measures continuously and directly O2%, pressure, temperature and C% present in the combustion gases inside any industrial furnace or boiler. Likewise, we have OPTIMA-CO® technology that also incorporates calculated CO2% and CO measurements, making them unique on the market.
These are NON-EXTRACTIVE zirconia analyzers with working temperature ranges between 550ºC and 1,550ºC, so there is no possibility of false signals, clogging when taking samples, problems with online condensate, sample conditioning, etc.
The implementation of the OPTIMA® analyzers is very simple since it only requires their introduction inside the hot chamber. The analyzer does not perform any sampling or purging. It is simply the measurement cell that, when introduced into the hot chamber, analyzes the composition of the gases in real time.
The analyzers can be mounted in a horizontal or vertical position depending on each application. We have a wide range of supports and protective barriers for mounting equipment. The retransmission of the signals is carried out through shielded hoses and low impedance connectors so that the existence of electrical noise does not affect the measurements.
OPTIMA® analyzers are resistant to mechanical and thermal shock, being manufactured with top quality materials. These equipment require low maintenance, only recommending annual cleaning and certification. All equipment is delivered with its corresponding quality certificate.

OXYCOMB HAS THREE RANGES OF OPTIMA® ANALYZERS

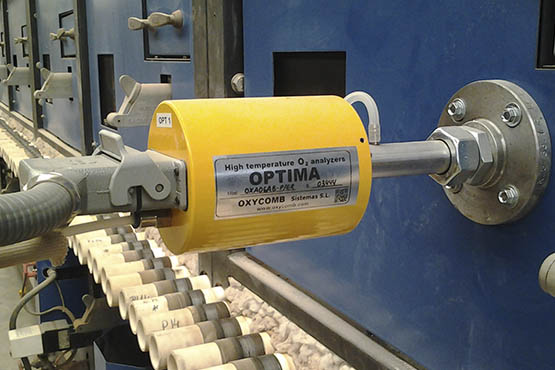

OPTIMA® OXA ANALYZERS

O2%, TEMPERATURE, PRESSURE, CO2% , CO MEASUREMENT

Designed for tile application, structural and sanitary ceramics, porcelain, biomass, emissions, others.

analizadores de combustion optima oxt

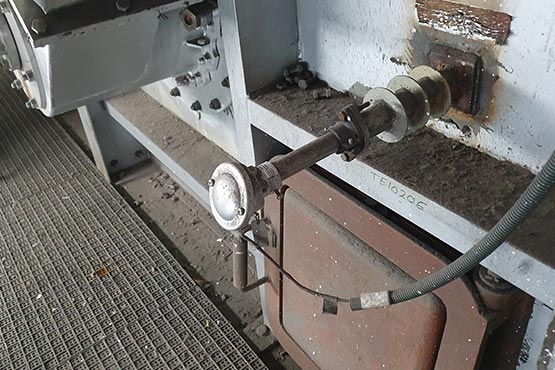

OPTIMA® OXT ANALYZERS

C% Mesurement

Designed for application in heat treatment of metals.

analizador oxv sistema optima

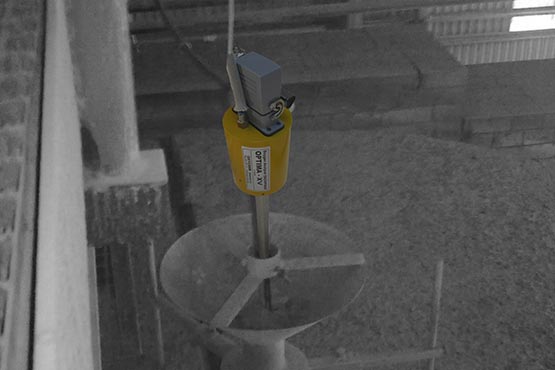

OPTIMA® OXV ANALYZERS

%O2, TEMPERATURE MEASUREMENT

Designed for application in the glass industry.
